Elastic AI Assistant for Observability and Search

Stack Serverless

The AI Assistant is an integration with a large language model (LLM) that helps you understand, analyze, and interact with your Elastic data.

You can interact with the AI Assistant in two ways:

• Contextual insights: Embedded assistance throughout Elastic UIs that explains errors and messages with suggested remediation steps.
• Chat interface: A conversational experience where you can ask questions and receive answers about your data. The assistant uses function calling to request, analyze, and visualize information based on your needs.

The AI Assistant integrates with your large language model (LLM) provider through our supported Elastic Stack connectors:

The Elastic AI Assistant for Observability and Search helps you:

• Decode error messages: Interpret stack traces and error logs to pinpoint root causes
• Identify performance bottlenecks: Find resource-intensive operations and slow queries in Elasticsearch
• Generate reports: Create alert summaries and incident timelines with key metrics
• Build and execute queries: Build Elasticsearch queries from natural language, convert Query DSL to ES|QL syntax, and execute queries directly from the chat interface
• Visualize data: Create time-series charts and distribution graphs from your Elasticsearch data

The AI assistant requires the following:

• An Elastic deployment:

  • For Observability: Elastic Stack version 8.9 or later, or an Observability serverless project.

  • For Search: Elastic Stack version 8.16.0 or later, or Serverless Elasticsearch project.

    • To run Elastic AI Assistant for Observability and Search on a self-hosted Elastic stack, you need an appropriate license.

• An account with a third-party generative AI provider that preferably supports function calling. If your AI provider does not support function calling, you can configure AI Assistant settings under Stack Management to simulate function calling, but this might affect performance.

  • The free tier offered by third-party generative AI provider may not be sufficient for the proper functioning of the AI assistant. In most cases, a paid subscription to one of the supported providers is required.

    Refer to the documentation for your provider to learn about supported and default models.

• The knowledge base requires a 4 GB machine learning node.

  • In Elastic Cloud or Elastic Cloud Enterprise, if you have Machine Learning autoscaling enabled, Machine Learning nodes will be started when using the knowledge base and AI Assistant. Therefore using these features will incur additional costs.

• A self-deployed connector service if content connectors are used to populate external data into the knowledge base.

It's important to understand how your data is handled when using the AI Assistant. Here are some key points:

Data usage by Elastic

Elastic does not use customer data for model training, but all data is processed by third-party AI providers.

Anonymization

Data sent to the AI Assistant is not anonymized, including alert data, configurations, queries, logs, and chat interactions. If you need to anonymize data, use the anonymization pipeline.

Permission context

When the AI Assistant performs searches, it uses the same permissions as the current user.

Third-party processing

Any data submitted may be used by the provider for AI training or other purposes with no guarantee of security or confidentiality.

Telemetry collection: Your AI provider may collect telemetry during usage. Contact them for details on what data is collected.

The AI Assistant connects to one of these supported LLM providers:

Setup steps:

1. Create authentication credentials with your chosen provider using the links above
2. Create an LLM connector by navigating to Stack Management → Connectors to create an LLM connector for your chosen provider.
3. Authenticate the connection by entering:
   • The provider's API endpoint URL
   • Your authentication key or secret

Elastic Managed LLM is the default large language model (LLM) connector available in the AI Assistant for eligible users. It provides immediate access to generative AI features without requiring any setup or external model integration.

The Elastic Managed LLM is available out-of-the box; no manual connector setup or API key management is required for initial use. However, you can configure and use a third-party LLM connector, such as OpenAI, Azure, or Amazon Bedrock if you prefer.

To learn more about security and data privacy, refer to the connector documentation and download the model card.

The AI Assistant uses one of the following text embedding models to run semantic search against the internal knowledge base index. The top results are passed to the LLM as context (retrieval‑augmented generation), producing more accurate and grounded responses:

• ELSER: Recommended for English-only use cases.
• E5: Stack Planned Recommended for non-English use cases.

Adding data such as Runbooks, GitHub issues, internal documentation, and Slack messages to the knowledge base gives the AI Assistant context to provide more specific assistance.

Add data to the knowledge base with one or more of the following methods:

• Use the knowledge base UI available at AI Assistant Settings page.
• Use content connectors

You can also add information to the knowledge base by asking the AI Assistant to remember something while chatting (for example, "remember this for next time"). The assistant will create a summary of the information and add it to the knowledge base.

To add external data to the knowledge base in Kibana:

1. To open AI Assistant settings, find AI Assistants in the global search field.

2. Under Elastic AI Assistant for Observability and Search, click Manage settings.

3. Switch to the Knowledge base tab.

4. Click the New entry button, and choose either:

   • Single entry: Write content for a single entry in the UI.

   • Bulk import: Upload a newline delimited JSON (ndjson) file containing a list of entries to add to the knowledge base. Each object should conform to the following format:

     {
       "id": "a_unique_human_readable_id",
       "text": "Contents of item"
     }


Content connectors index content from external sources like GitHub, Confluence, Google Drive, Jira, S3, Teams, and Slack to improve the AI Assistant's responses.

• For Elastic Stack 9.0.0+ or Serverless, connectors must be self-managed.
• Manage connectors through the Search Solution in Kibana (pre-9.0.0) or with the Connector APIs.

By default, the AI Assistant queries all search connector indices. To customize which indices are used in the knowledge base, set the Search connector index pattern setting on the AI Assistant Settings page.

The Search connector index pattern setting is space aware. This means you can assign different values for different spaces. For example, a "Developers" space may include an index pattern like github-*,jira*, while an "HR" space may include an index pattern like employees-*.

Field names in custom indices have no specific requirements. Any semantic_text field is automatically queried. Documents matching the index pattern are sent to the LLM in full, including all fields. It's not currently possible to include or exclude specific fields.

1. Create a connector

   Use the UI:

   • Navigate to Content / Connectors in the global search field
   • Create a connector for your data source (example: GitHub connector)
   • If your Space lacks the Search solution, either create the connector from a different space or change your space Solution view to Classic

   Use the API:

   • Create a connector using the Connector APIs

2. Create embeddings (choose one method):

   • semantic_text field: Recommended workflow which handles model setup automatically. Allows the use of any available ML model (Elser, e5, or custom models).
   • ML pipeline: Requires manual setup of the ELSER model and inference pipeline.

To create the embeddings needed by the AI Assistant using a semantic_text field type:

1. Open the previously created connector, and select the Mappings tab.
2. Select Add field.
3. Under Field type, select Semantic text.
4. Under Reference field, select the field you want to use for model inference.
5. Under Select an inference endpoint, select the model you want to use to add the embeddings to the data.
6. Add the field to your mapping by selecting Add field.
7. Sync the data by selecting Full Content from the Sync menu.

The AI Assistant will now query the connector you’ve set up using the model you’ve selected. Check that the AI Assistant is using the index by asking it something related to the indexed data.

This is a more complex method that requires you to set up the ELSER model and inference pipeline manually.

To create the embeddings needed by the AI Assistant (weights and tokens into a sparse vector field) using an ML Inference Pipeline:

1. Open the previously created content connector in Content / Connectors, and select the Pipelines tab.
2. Select Copy and customize under Unlock your custom pipelines.
3. Select Add Inference Pipeline under Machine Learning Inference Pipelines.
4. Select the ELSER (Elastic Learned Sparse EncodeR) ML model to add the necessary embeddings to the data.
5. Select the fields that need to be evaluated as part of the inference pipeline.
6. Test and save the inference pipeline and the overall pipeline.

After creating the pipeline, complete the following steps:

1. Sync the data.

   Once the pipeline is set up, perform a Full Content Sync of the connector. The inference pipeline will process the data as follows:

   • As data comes in, ELSER is applied to the data, and embeddings (weights and tokens into a sparse vector field) are added to capture semantic meaning and context of the data.
   • When you look at the ingested documents, you can see the embeddings are added to the predicted_value field in the documents.

2. Check if AI Assistant can use the index (optional).

   Ask something to the AI Assistant related with the indexed data.

User-specific prompts customize how the AI assistant responds by appending personalized instructions to built-in system prompts. For example, you could specify "Always respond in French," and all subsequent responses will be in French.

A user-specific prompt only applies to the user that sets it.

To edit the User-specific System Prompt:

1. Go to the Elastic AI Assistant for Observability and Search management page. You can find it in the Management menu or by using the global search field.
2. Switch to the Knowledge base tab.
3. Select Edit User-specific Prompt.

User-specific prompts are useful when configuring specific workflows. For example, if you want the assistant to respond in a consistent, readable format when asked about Kubernetes metadata, you might add the following user-specific system prompt:

<kubernetes_info>
If asked about a Kubernetes pod, namespace, cluster, location, or owner, return the info in this format.  Use the field names to find the relevant information requested.  Don't mention the field names, just the results.
- Pod: agent.name
- Namespace: data_stream.namespace
- Cluster Name: orchestrator.cluster.name
- Owner: cloud.account.id
</kubernetes_info>

Stack Planned

Choose the default language model for the AI Assistant in the AI Assistant settings under Set text embeddings model.

• ELSER: recommended for English-only use cases.
• E5: supports multilingual use cases.

Select the language model and click Update.

When switching models, all existing Knowledge Base entries must be reindexed. Entries will be unavailable until reindexing is complete.

To have the AI Assistant respond in a language other than English, set a user specific prompt.

Chat with the AI Assistant or interact with contextual insights located throughout the UI. Check the following sections for more on interacting with the AI Assistant.

Select the AI Assistant icon () at the upper-right corner of the Serverless or Kibana UI to start the chat.

This opens the AI Assistant flyout, where you can ask the assistant questions about your instance:

×

Stack Preview Serverless Preview

The AI Assistant uses functions to include relevant context in the chat conversation through text, data, and visual components. Both you and the AI Assistant can suggest functions. You can also edit the AI Assistant’s function suggestions and inspect function responses.

Main functions:

alerts

Get alerts for Observability.

changes

Get change points like spikes and dips for logs and metrics data.

elasticsearch

Call Elasticsearch APIs on your behalf.

execute_connector

Call a Kibana connector on your behalf.

get_alerts_dataset_info

Get information about alerts data within a specified time range.

get_data_on_screen

Get the structured data of content currently visible on the user's screen. Use this function to provide more accurate and context-aware responses to your questions.

get_dataset_info

Get information about available indices and datasets and their fields.

kibana

Call Kibana APIs on your behalf.

query

Generate, execute, and visualize queries based on your request.

retrieve_elastic_doc

Get relevant Elastic documentation. This function is only available if the product documentation is installed.

summarize

Store information and facts in the knowledge base for future use. This function is only available if the knowledge base has already been installed.

Additional functions are available when your cluster has APM data:

get_apm_dataset_info

Get information about APM data.

get_apm_downstream_dependencies

Get the downstream dependencies (services or uninstrumented backends) for a service. Map the downstream dependency name to a service by returning both span.destination.service.resource and service.name. Use this to drill down further if needed.

get_apm_services_list

Get the list of monitored services, their health statuses, and alerts.

AI Assistant contextual prompts throughout Observability provide the following information:

• Universal Profiling: explains the most expensive libraries and functions in your fleet and provides optimization suggestions.
• Application performance monitoring (APM): explains APM errors and provides remediation suggestions.
• Infrastructure Observability: explains the processes running on a host.
• Logs: explains log messages and generates search patterns to find similar issues.
• Alerting: provides possible causes and remediation suggestions for log rate changes.

For example, in the log details, you’ll see prompts for What’s this message? and How do I find similar log messages?:

×

Clicking a prompt generates a message specific to that log entry:

×

Continue a conversation from a contextual prompt by clicking Start chat to open the AI Assistant chat.

Use the Observability AI Assistant connector to add AI-generated insights and custom actions to your alerting workflows as follows:

1. Navigate to Observability / Alerts to create (or edit) an alerting rule that uses the AI Assistant connector. Specify the conditions that must be met for the alert to fire.

2. Under Actions, select the Observability AI Assistant connector type.

3. In the Connector list, select the AI connector you created when you set up the assistant.

4. In the Message field, specify the message to send to the assistant:


   ×

You can ask the assistant to generate a report of the alert that fired, recall any information or potential resolutions of past occurrences stored in the knowledge base, provide troubleshooting guidance and resolution steps, and also include other active alerts that may be related. As a last step, you can ask the assistant to trigger an action, such as sending the report (or any other message) to a Slack webhook.

When the alert fires, contextual details about the event—such as when the alert fired, the service or host impacted, and the threshold breached—are sent to the AI Assistant, along with the message provided during configuration. The AI Assistant runs the tasks requested in the message and creates a conversation you can use to chat with the assistant:

×

It might take a minute or two for the AI Assistant to process the message and create the conversation.

Note that overly broad prompts may result in the request exceeding token limits. For more information, refer to Token limits. Also, attempting to analyze several alerts in a single connector execution may cause you to exceed the function call limit. If this happens, modify the message specified in the connector configuration to avoid exceeding limits.

When asked to send a message to another connector, such as Slack, the AI Assistant attempts to include a link to the generated conversation.

×

Elastic AI Assistant for Observability and Search connector is called when the alert fires and when it recovers.

To learn more about alerting, actions, and connectors, refer to Alerting.

To access the AI Assistant Settings page, you can:

• Find AI Assistants in the global search field.
• Use the More actions menu inside the AI Assistant window.

The AI Assistant Settings page contains the following tabs:

• Settings: Configures the main AI Assistant settings, which are explained directly within the interface.
• Knowledge base: Manages knowledge base entries.
• Content connectors: Provides a link to Kibana Search → Content → Connectors UI for connectors configuration.

You can make the official Elastic documentation available to the AI Assistant, which significantly improves its ability to accurately answer questions about the Elastic Stack and Elastic products.

Enable this feature from the Settings tab in AI Assistant Settings by using the "Install Elastic Documentation" action.

Stack Planned Serverless Preview

Anonymization masks personally identifiable or otherwise sensitive information before chat messages leave Kibana for a third-party LLM. Enabled rules substitute deterministic tokens (for example EMAIL_ee4587…) so the model can keep context without ever seeing the real value. When all rules are disabled (the default), data is forwarded unchanged.

When an anonymization rule is enabled in the AI Assistant settings, every message in the request (system prompt, message content, function call arguments/responses) is run through an anonymization pipeline before it leaves Kibana:

1. Each enabled rule scans the text and replaces any match with a deterministic token such as
   EMAIL_ee4587b4ba681e38996a1b716facbf375786bff7.
   The prefix (EMAIL, PER, LOC, …) is the entity class; the suffix is a deterministic hash of the original value.
2. The fully masked conversation is sent to the LLM.

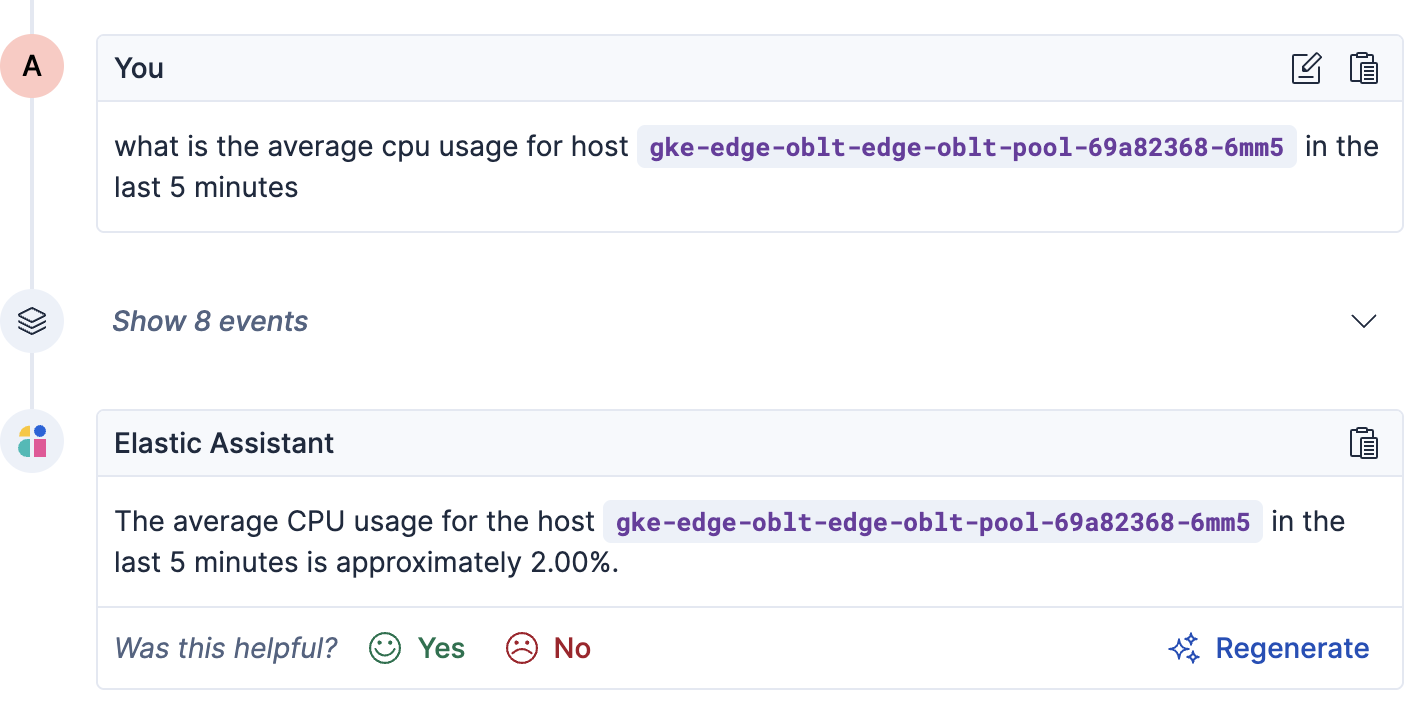

3. After the LLM responds, the original values are restored so the user sees deanonymized text and any persisted conversation history stores the original content. Deanonymization information is stored with the conversation messages to enable the UI to highlight anonymized content.

RegExp: Runs a JavaScript‑style regular expression. Use for fixed patterns such as email addresses, host names, etc.

{
  "type": "RegExp",
  "pattern": "([a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,})",
  "entityClass": "EMAIL",
  "enabled": true
}

NER: Runs a named entity recognition (NER) model on free text.

{
  "type": "NER",
  "modelId": "elastic__distilbert-base-uncased-finetuned-conll03-english",
  "allowedEntityClasses": ["PER", "ORG", "LOC"],
  "enabled": true
}

Rules are evaluated top-to-bottom with RegExp rules processed first, then NER rules; the first rule that captures a given entity wins. Rules can be configured in the AI Assistant Settings page.

The following example shows the anonymized content highlighted in the chat window using a RegExp rule to mask GKE hostnames:

{
  "entityClass": "GKE_HOST",
  "type": "RegExp",
  "pattern": "(gke-[a-zA-Z0-9-]+-[a-f0-9]{8}-[a-zA-Z0-9]+)",
  "enabled": true
}

×

Anonymization requires the following:

• Advanced Settings privilege: Necessary to edit the configuration and enable rules.
  Once saved, all users in the same Space benefit from the anonymization (the setting is space-aware).
• ML privilege and resources: If you enable a rule of type NER, you must first deploy and start a named-entity-recognition model and have sufficient ML capacity.

Anonymization has the following limitations:

• Performance (NER): Running an NER model can add latency depending on the request. To improve performance of the model, consider scaling up your ML nodes by adjusting deployment parameters: increase number_of_allocations for better throughput and threads_per_allocation for faster individual requests. For details, refer to start trained model deployment API.
• Structured JSON: The NER model we validated (elastic/distilbert-base-uncased-finetuned-conll03-english) is trained on natural English text and often misses entities inside JSON or other structured data. If thorough masking is required, prefer regex rules and craft them to account for JSON syntax.
• False negatives / positives: No model or pattern is perfect. Model accuracy may vary depending on model and input.
• JSON malformation risk: Both NER inference and regex rules can potentially create malformed JSON when anonymizing JSON data such as function responses. This can occur by replacing text across character boundaries, which may break JSON structure causing the whole request to fail. If this occurs, you may need to adjust your regex pattern or disable the NER rule.

Most LLMs have a set number of tokens they can manage in single a conversation. When you reach the token limit, the LLM will throw an error, and Elastic will display a "Token limit reached" error in Kibana. The exact number of tokens that the LLM can support depends on the LLM provider and model you’re using. If you use an OpenAI connector, monitor token utilization in OpenAI Token Usage dashboard. For more information, refer to the OpenAI Connector documentation.
